1. Planning Your Louvered Pergola Installation

1.1 Assessing Your Outdoor Space

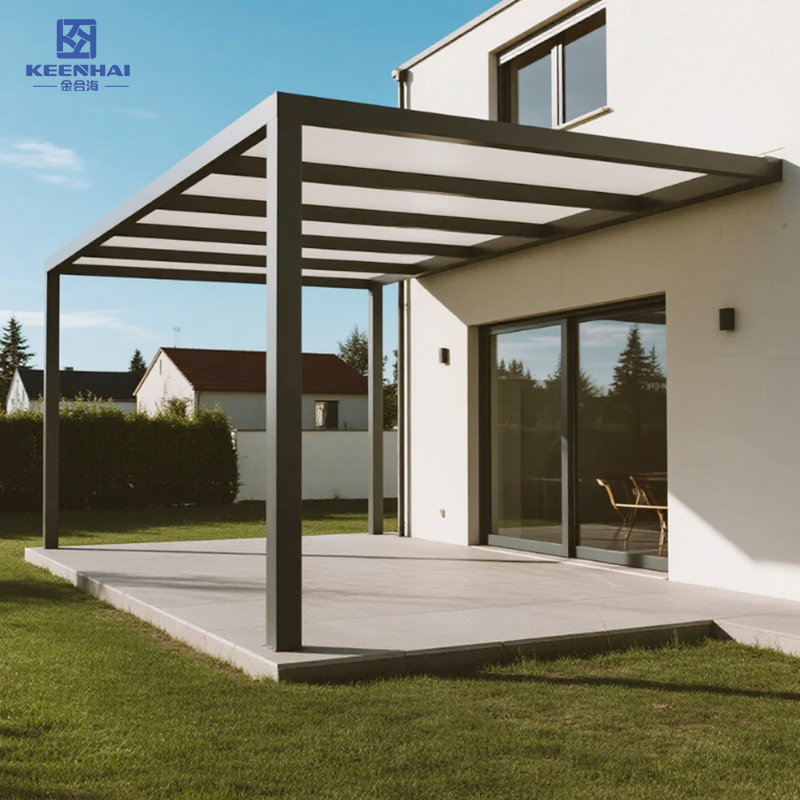

Before you start any installation, take a thorough look at your backyard, patio, or terrace. Measure the available space accurately—length, width, and height—to ensure your pergola fits comfortably without obstructing walkways or landscaping features. Consider sun exposure, prevailing wind direction, and drainage patterns, as these will influence the orientation and positioning of your Louvres Pergola.

Also, note any existing structures or utility lines. For instance:

1. Power outlets or lighting fixtures can dictate where electrical wiring for motorized louvers should run.

2. Trees and garden beds may require slight adjustments to ensure optimal sunlight and airflow.

Sketch a simple layout marking all critical points. This early planning prevents costly adjustments later and ensures a smooth installation process.

1.2 Choosing the Right Pergola Size and Style

Selecting the right pergola isn’t just about aesthetics—it’s about functionality and space optimization. When comparing different types:

This table helps visualize size options and usage scenarios. Depending on your intended use—dining area, lounge space, or garden retreat—you can pick a design that maximizes both comfort and curb appeal. For instance, a modern aluminum pergola works well for sleek terraces, while a freestanding Outdoor Pergola suits open garden spaces.

1.3 Selecting Materials and Accessories

Material choice is critical for durability, maintenance, and weather resistance. Aluminum frames are lightweight, corrosion-resistant, and ideal for motorized louver systems. If you want a low-maintenance setup, powder-coated aluminum is highly recommended.

Consider optional accessories to enhance functionality:

1. Integrated LED lighting for nighttime use.

2. Retractable shades or screens for added privacy and sun protection.

3. Heating elements for year-round comfort in cooler climates.

Choosing the right combination of frame material and accessories ensures your pergola remains stylish, functional, and low-maintenance for years. A premium Aluminum Pergola can handle strong winds, resist corrosion, and support motorized louvers, offering a long-term investment in your outdoor space.

2. Preparing the Site and Tools

2.1 Ground Leveling and Site Preparation

Before installation, ensure the site is level and free from debris. Uneven ground can lead to structural instability, misaligned louvers, and water pooling. Follow these steps:

1. Clear the area of plants, rocks, and other obstacles.

2. Check the slope using a long level or laser level; ideally, the surface should have less than a 1% grade deviation.

3. Compact the soil using a hand tamper or plate compactor to prevent shifting.

4. Add a stable base if necessary, such as concrete pads or gravel, especially in softer soil areas.

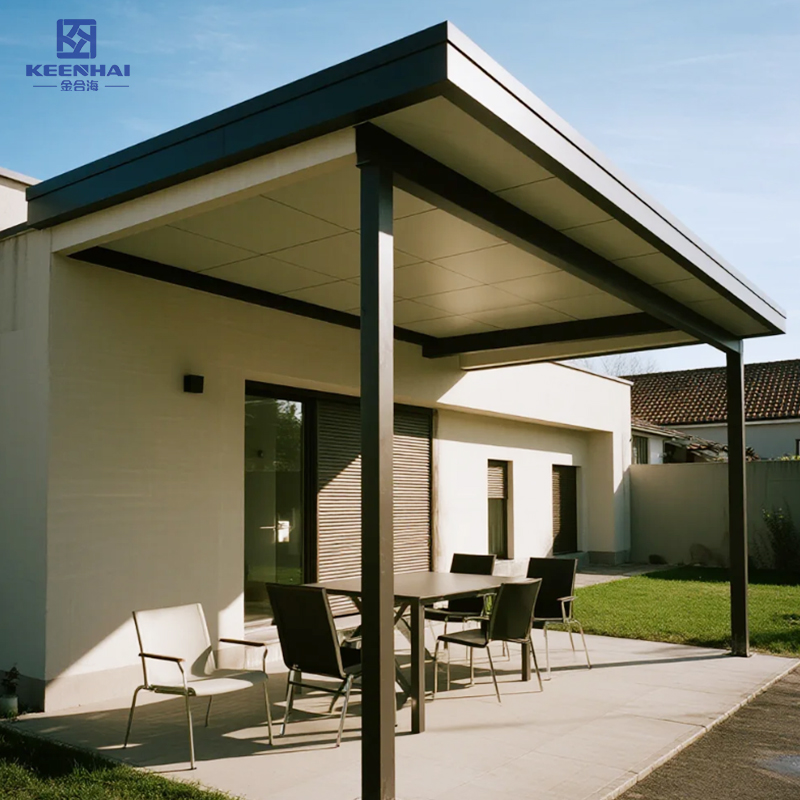

For larger structures like an Aluminum pergola house, this preparation is crucial to maintain alignment and support motorized or adjustable louvers safely.

2.2 Required Tools and Safety Gear

Having the right tools and safety equipment makes the installation smoother and reduces risk. Typical tools include:

1. Measuring tape, level, and chalk line – for precise alignment.

2. Drill, impact driver, and screwdrivers – to secure frame components.

3. Wrenches and socket sets – for bolts and brackets.

4. Ladder or scaffolding – depending on pergola height.

Safety gear is equally important: hard hats, gloves, eye protection, and sturdy footwear. Always double-check power tools for proper function before starting. A premium Aluminum Pergola may include heavier components, so using proper lifting aids like jacks or hoists is highly recommended.

2.3 Checking Local Building Codes and Permits

Before digging or assembling, verify local building codes and permit requirements. Requirements can vary depending on:

• Structure size and height.

• Distance from property lines.

• Electrical wiring if motorized louvers are involved.

Steps to follow:

1. Visit your local municipality or city website for zoning regulations.

2. Document any restrictions or permit applications required.

3. Ensure your design complies with wind load and snow load regulations if applicable.

Following these steps prevents fines, legal issues, and potential structural problems down the line. Proper preparation also makes the installation of your Louvres Pergola or related structures far more predictable and stress-free.

3. Step-by-Step Assembly of the Pergola Frame

3.1 Installing Posts and Anchors

The posts form the backbone of your Louvres Pergola, so accurate installation is critical. Follow these steps for a secure foundation:

1. Mark post locations according to your pergola layout, double-checking dimensions with a measuring tape.

2. Dig post holes at least 24 inches deep for stability; in areas with loose soil, consider concrete footings.

3. Insert anchors or post bases, ensuring each is perfectly vertical using a spirit level.

4. Secure posts to anchors with heavy-duty bolts, tightening gradually to maintain alignment.

5. Recheck vertical alignment before concrete sets or final tightening.

Properly anchored posts prevent sagging or movement, especially for larger structures or motorized louvers.

3.2 Assembling Horizontal Beams and Crossbars

Once posts are set, it’s time to connect the horizontal components:

1. Lift the main beams and position them atop posts; use temporary supports if necessary.

2. Align crossbars perpendicular to the main beams at specified intervals for optimal structural integrity.

3. Bolt or screw each connection, starting at one end and gradually working across to prevent twisting.

4. Add reinforcements such as corner brackets or gusset plates for extra rigidity.

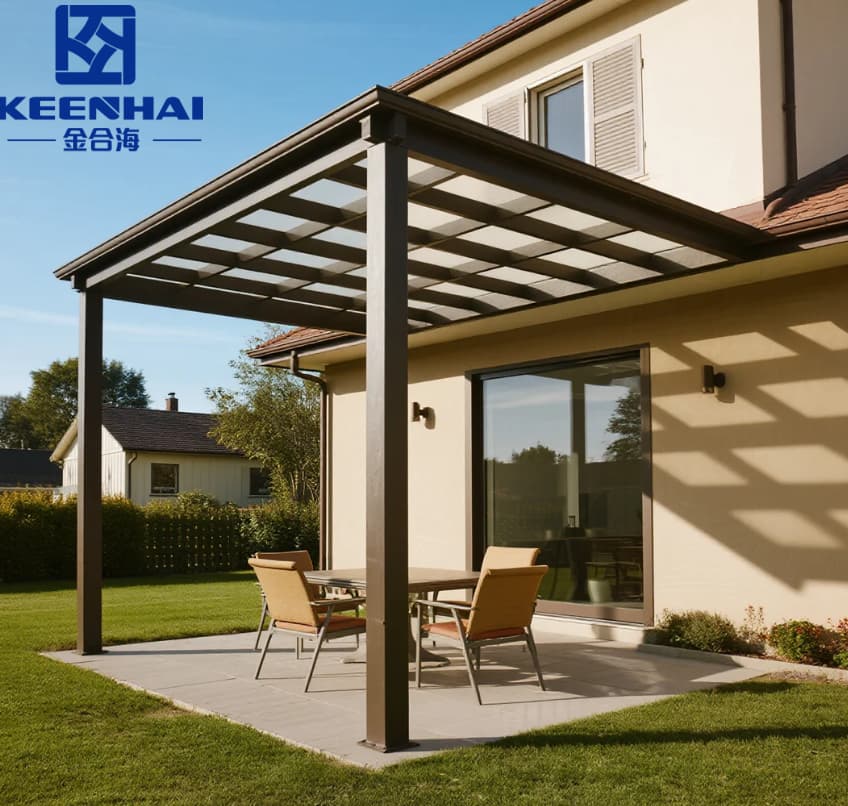

For heavier pergolas like an Aluminum modern pergola, using a second person or a hoist significantly reduces risk and ensures precision.

3.3 Ensuring Structural Level and Stability

Structural integrity is vital for longevity and safety:

1. Use a long level or laser level to check beams and crossbars horizontally.

2. Adjust connections as needed to eliminate any tilt or misalignment.

3. Test post stability by applying light lateral pressure; if movement occurs, add additional anchoring or bracing.

4. Inspect all fasteners one final time, ensuring they are tight but not over-torqued to avoid metal fatigue.

Maintaining exact alignment at this stage makes subsequent installation of louvers, motors, or accessories far easier, preventing uneven operation or excessive wear over time.

4. Installing Louvered Roof Panels

4.1 Attaching Louvers to the Frame

Attaching the louvers correctly ensures smooth operation and long-term durability. Follow these steps carefully:

1. Measure each louver to match the spacing between crossbars, allowing a slight gap (around 1/4 inch) for thermal expansion.

2. Position the first louver at one end of the frame, aligning it with the crossbar brackets.

3. Secure with screws or bolts, making sure the fasteners go into pre-drilled holes or reinforced brackets.

4. Continue installing remaining louvers, maintaining consistent spacing and alignment.

5. For motorized or heavier panels, enlist a helper to hold the louver while fastening to prevent bending or misalignment.

Correct attachment is critical, especially for Aluminum louvered roof gazebo variants, where precision affects motor efficiency and roof longevity.

4.2 Adjusting Louver Angle and Alignment

Proper angle and alignment guarantee effective sunlight control and water runoff:

1. Check each louver with a digital angle gauge or protractor for uniform tilt.

2. Adjust individual louvers by loosening fasteners slightly, tilting to the desired angle (usually 0–135° range), then retightening.

3. Ensure parallel alignment across the entire roof to prevent gaps or uneven exposure.

4. Verify clearance between adjacent louvers; this avoids rattling in wind or jamming during operation.

Attention to detail here prevents long-term wear and ensures smooth operation for both manual and automated louver systems.

4.3 Testing Manual or Motorized Operation

Testing confirms installation accuracy and prepares your pergola for everyday use:

1. If manual, gently rotate each louver using the control rod or lever, checking for smooth movement without resistance.

2. For motorized systems, connect the power supply and run a full open-close cycle.

3. Observe any misalignment or noise; stop immediately to adjust mounting brackets or motor settings.

4. Repeat 2–3 cycles to ensure consistent performance and verify that louvers lock securely in all positions.

Well-tested louvers ensure long-lasting functionality and optimal comfort in all weather conditions, especially for Aluminum motorized pergola setups.

5. Adding Accessories and Finishing Touches

5.1 Integrating Lighting and Heating Options

Adding lighting and heating enhances usability and comfort:

1. Plan electrical layout before installation to avoid drilling into structural supports later. Use waterproof outdoor wiring rated for aluminum structures.

2. Install LED strips or recessed fixtures along crossbars or under louvers for uniform illumination.

3. For heating, mount infrared heaters strategically to cover the seating area without obstructing louver movement.

4. Test all systems to ensure safe operation and proper coverage.

For motorized or automated systems like Aluminum Pergolas, integrated lighting can be synchronized with louver movement for smart control, adding both convenience and ambiance.

5.2 Installing Screens, Shades, or Gutters

Screens, shades, and gutters improve privacy, sun control, and water management:

1. Measure openings accurately to select screen or shade sizes that fit snugly.

2. Mount roller or retractable shades with brackets, making sure they don’t interfere with louver rotation.

3. Install gutters along the perimeter to direct rainwater away from posts and decking. Use silicone seals at joints to prevent leaks.

4. Test full movement of screens and louvers together to avoid obstruction.

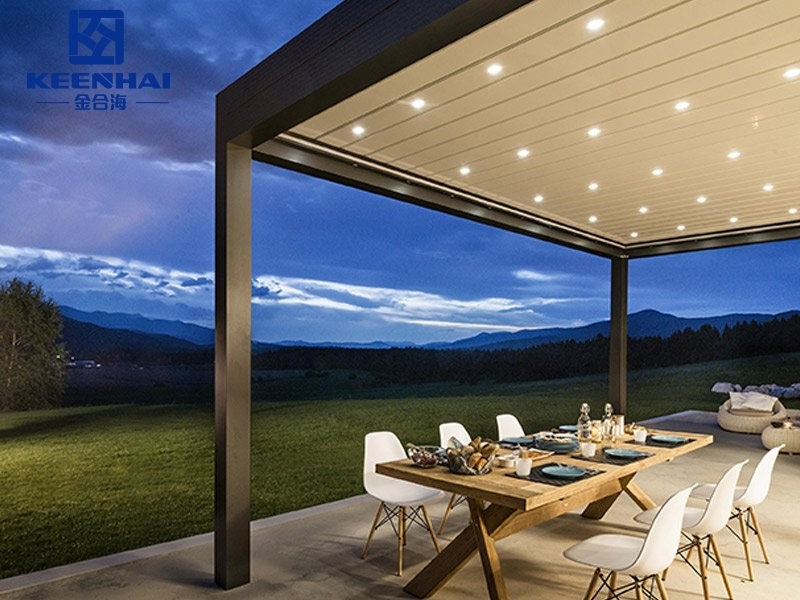

Adding these accessories transforms your pergola into a multi-functional outdoor space suitable for year-round use, especially for setups like Outdoor Pergola.

5.3 Painting, Sealing, or Powder-Coating Surfaces

Finishing surfaces protects against corrosion, UV damage, and wear:

1. Clean surfaces thoroughly to remove dust, grease, or fingerprints.

2. Apply primer compatible with aluminum or steel to enhance coating adhesion.

3. Use powder-coating or weather-resistant paint in thin, even layers to prevent drips or uneven coverage.

4. Allow proper curing time before attaching louvers, lights, or accessories to prevent scratching.

Well-finished surfaces extend the life of your pergola, maintain aesthetic appeal, and reduce long-term maintenance, particularly for premium options like Aluminum modern pergola.
